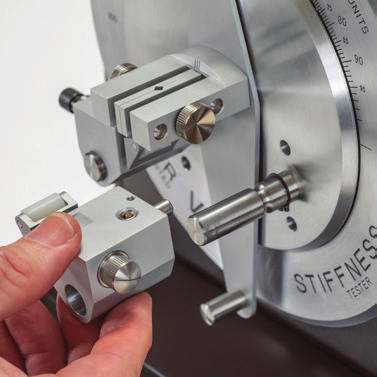

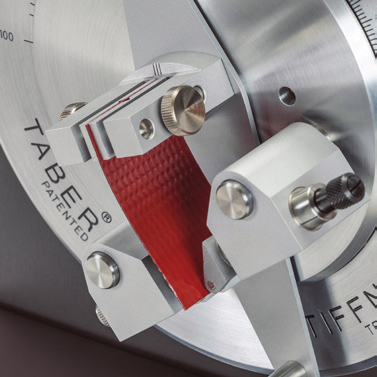

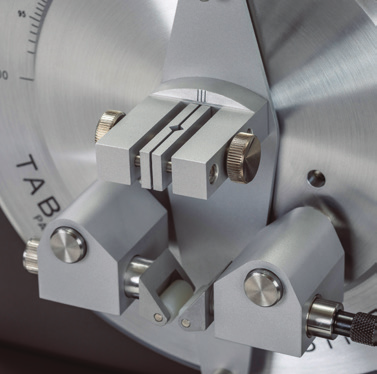

A force is applied to the lower end of the specimen by a pair of rollers which are attached to the driving disc. The resultant torque tilts the pendulum from its vertical position and a Taber Stiffness Unit reading (g • cm) is taken automatically when the pendulum mark aligns with the appropriate driving disc mark (7.5º or 15º). Predetermined sample length, deflection angle and rate of loading provide accurate and reproducible test results.

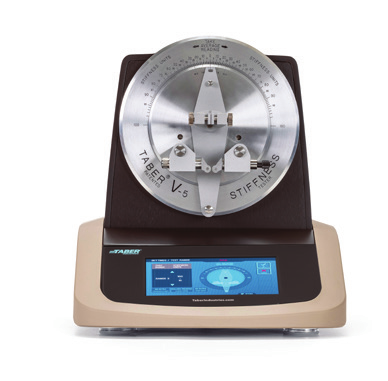

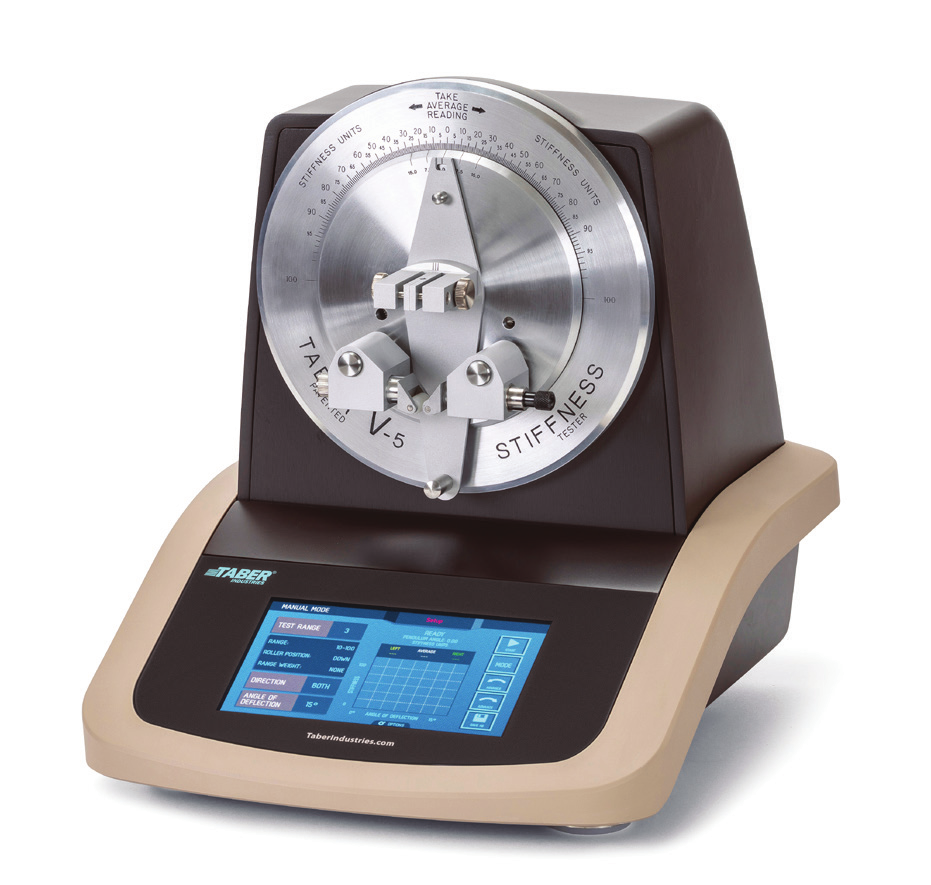

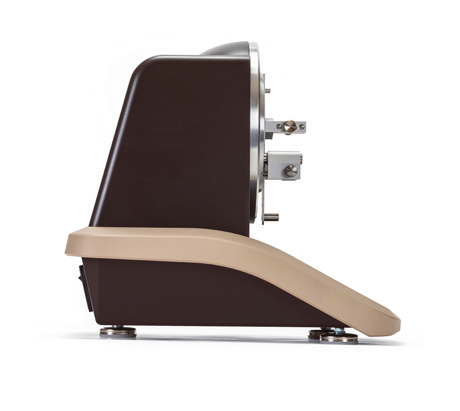

This Taber® Stiffness Tester model 150-T can evaluate paper, foil, light metallic sheet, laminated plastic, cardboard, wire, and other flexible materials up to 5.5 mm (0.219 in.) in thickness that do not exceed 10,000 Taber Stiffness Units.
NOTE: This video showcases an older Stiffness Tester model, but it may still be helpful to showcase the general usage of this product.
A Complete Data Sheet for the Taber® Stiffness Tester 150-T is available for download:
Ask for Price
Standard Features Model 150-T:
- Compensator Range Weight

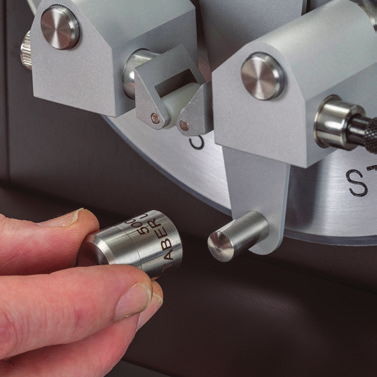

- Taber Unit Range Weights (500, 1000, 2000)
- Calibration Specimen
Optional Accessories (sold separately):
- Triple Cut Specimen Shear [P/N 980104-11] cuts 38 x 70 mm or 38 x 38 mm specimens;
- High Sensitivity Range Attachment [P/N 980150-14] evaluate materials below 1.0 unit;
- Auxiliary Range Weight Set [P/N 125656] 300 – 3000, 500 – 5000 & 1000 – 10000 units;
- Calibration Specimens (for routinely checking the state of calibration):
· Calibration Specimen 62, Model 104-151-1 [P/N 125390-1]
· Calibration Specimen 225, Model 104-151-2 [P/N 125390-2]
· Calibration Specimen 440, Model 104-151-3 [P/N 125390-3]
· Calibration Specimen 565, Model 104-151-4 [P/N 125390-4]
· Calibration Specimen 1060, Model 104-151-5 [P/N 125390-5]
| SDO | Number | Title / Description |
| Appita | 1301.431RP | Stiffness of Paper and Paperboard Australian/New Zealand Standards series 1301, Methods of test for pulp and paper have been developed by the Appita Technical Committee and are published by Standards Australia and Standards New Zealand. |
| SAI | 1301.431RP | Methods of Test For Pulp and Paper — Taber Bending Resistance of Paper and Paperboard |
| ASTM | D5342 | Standard Test Method for Resistance to Bending, of Paper and Paperboard (Taber-Type Tester) |
| ASTM | D5650 | Standard Test Method for Resistance to Bending of Paper of Low Bending Stiffness (Taber-Type Tester in 0 - 10 Taber Stiffness Unit Configuration) |
| BSI | BS 3748 | Method for Determination of Resistance to Bending of Paper and Paper Board. |
| CPPS | D28P | Stiffness of Paper and Paperboard (Taber Method) |
| ISO | 2493 | Paper and Board — Determination of Resistance to Bending |
| JIS | P8125 | Testing Method for Stiffness of Paperboard by Bending Load |
| TAPPI | T 489 om4 | Bending Resistance (Stiffness) of Paper and Paperboard (Taber Type Stiffness Tester in Basic Configuration) |
| TAPPI | T 566 om2 | Bending Resistance (Stiffness) of Paper (Taber Type Tester in 0 — 10 Taber Stiffness Unit Configuration) |
| AENOR | UNE 57075 | Paper and Board, Determination of Resistance to Bending. |
