Product Description
The 408 case tapers to a 1 x 1 base to allow better access to confined areas. A removable top knob permits both easy handheld use or attachment to test stands.

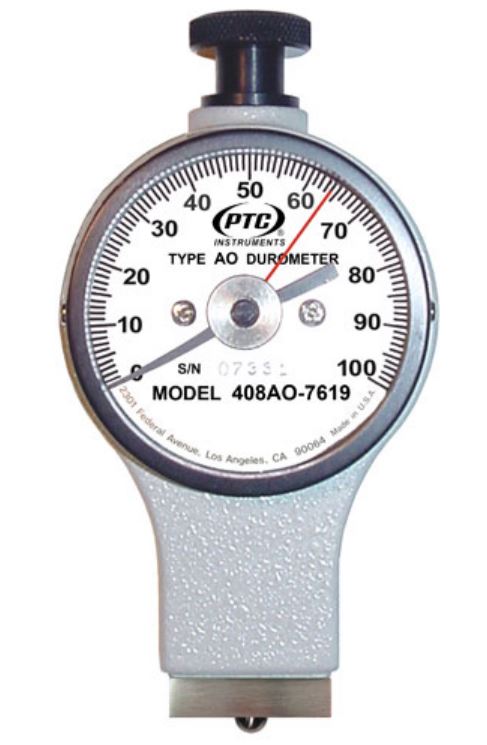

Type AO: The Model 408AO-7619 Durometer is designed to measure Type AO hardness per ISO 7619-1 Standard.

This instrument measures the indentation hardness of vulcanized or thermoplastic rubber in low hardness range and cellular rubbers.

The Durometer comes standard with a Magnetic Max Hold hand, which will retain it’s peak reading when needed. The case tapers to a 1″ x 1″ base to allow better access to confined areas and still meet the required minimum base area of 500 mm2. A removable top knob permits both easy handheld use or attachment to a Test Stand.

Get a Quote or Purchase this Product

$875.00

Get Quote
top
PTC Classic Style Durometer: Features Fill 118 Copy 1 Created with Sketch.
  • Max Hold Pointer Standard
  • Easy to Read 0 to 100 Point Dial
  • Resettable ancillary hand records the peak reading
  • Threaded mounting knob permits permanent test stand emplacement
  • Accessory Test Stands Available
  • Includes Precision Aluminum Test Block
  • Carrying Case
PTC Classic Style Durometers: Specifications Fill 118 Copy 1 Created with Sketch.
ASTM Scale:A
Standards:ASTM D2240
Pointer Sweep:240º
Scale:0 — 100, 1 Point Graduations
Accuracy:± 1 Point
Dimensions (H x W x D):102 x 57 x 44 mm (4.0 x 2.25 x 1.75 inch)
Finish:Blue Mottled
Weight:227 g (8 oz.)
Presser Foot:41.275 x 25.4 mm (1.625 x 1.0 inch)
